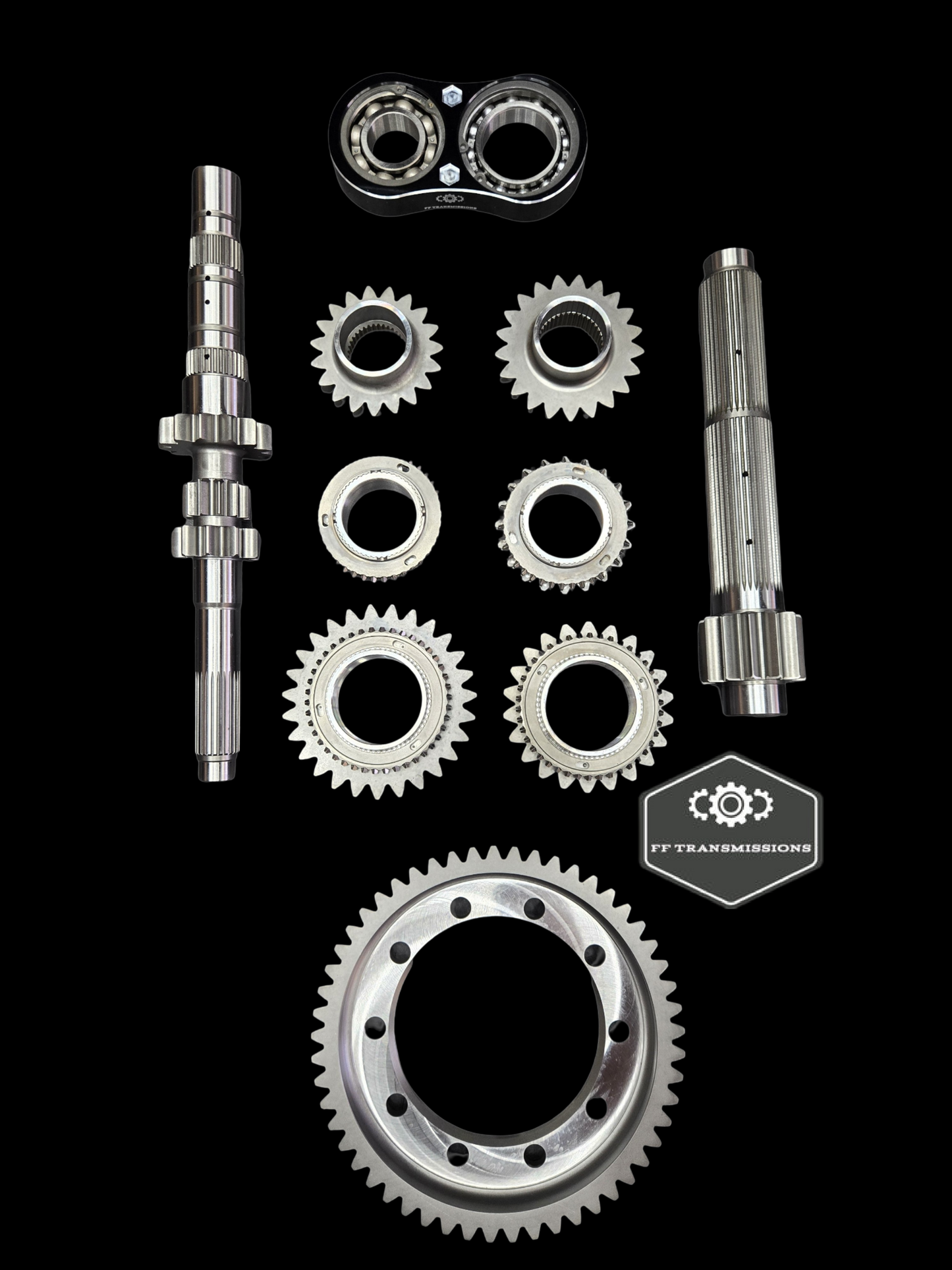

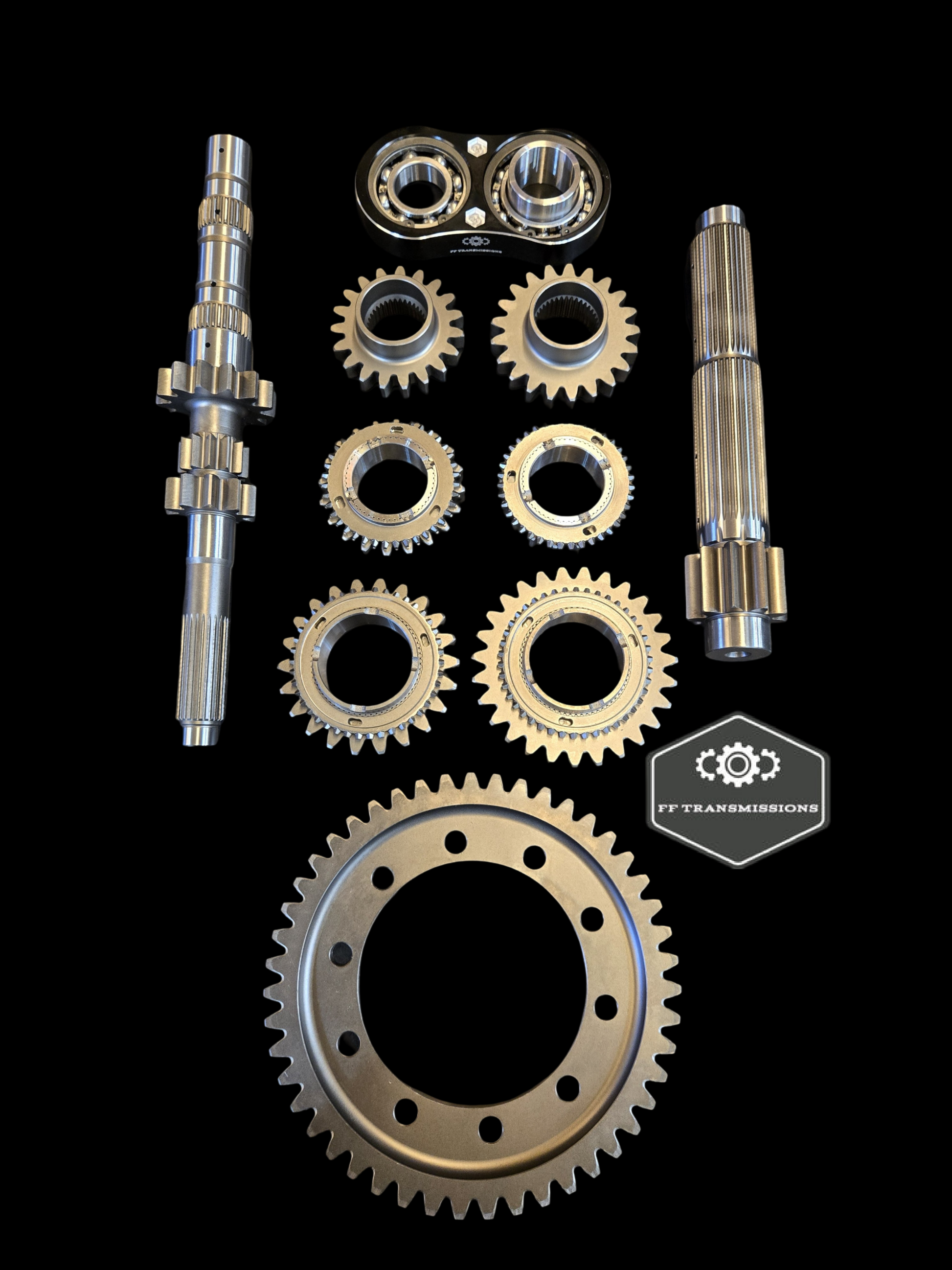

HONDA K SERIES STRAIGHT CUT SYNCHRO GEARS 1-4 & CUFF & FINAL DRIVE
- Regular price
- $3,075.00
- Sale price
- $3,075.00
- Regular price
-
Key Performance Features
-
Straight-Cut Tooth Design: Reduces drivetrain parasitic loss, allowing more power to reach the wheels while handling high torque/boost spikes.
-
Modular Splined Gear Bodies: Simplifies servicing and maintenance—replace individual worn components without needing to purchase an entire new gear assembly.
-
Enhanced Tooth Profile: Oversized, heavy-duty teeth provide maximum strength for high-horsepower turbo street builds.
Gear Ratios
| Gear | Ratio |
| 1st | 2.6 |
| 2nd | 1.6 |
| 3rd | 1.2 |
| 4th | 0.9 |

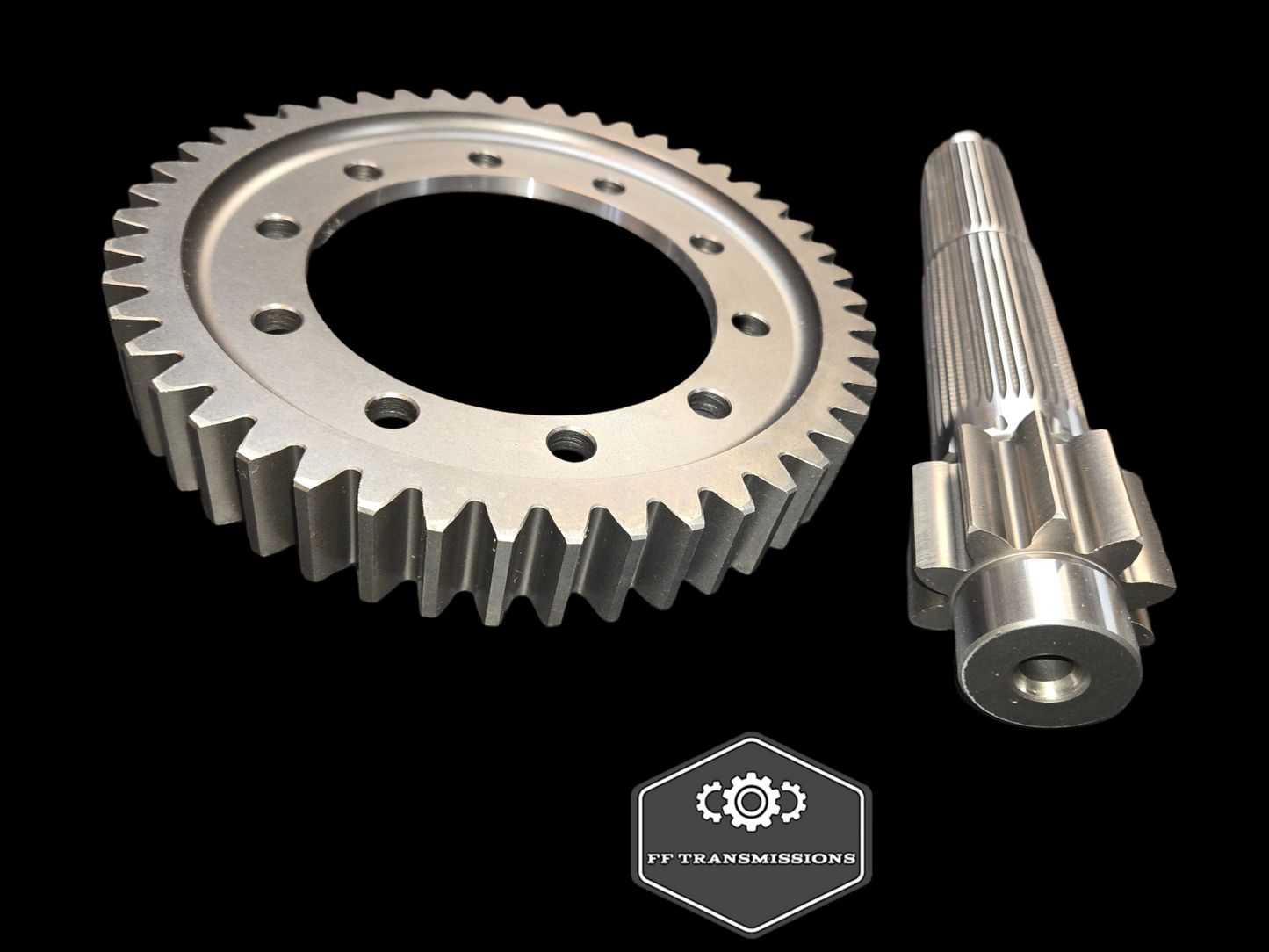

| Final Drive | Straight-Cut |
Tech & Fitment Requirements
⚠️ IMPORTANT INSTALLATION NOTES
Due to the significantly larger tooth profile and heavy-duty design of this gearset, specific clearancing and component requirements must be met during assembly:
-
Clearancing Requirements:
-
Reverse Actuator & Reverse Fork: Must be clearanced to accommodate the larger gear diameters.
-
Speed Sensor: Must be shimmed/spaced using a washer on front-casing speed sensor setups (non-differential speed sensors). Failure to clearance will cause the larger gears to contact the sensor magnet.
-

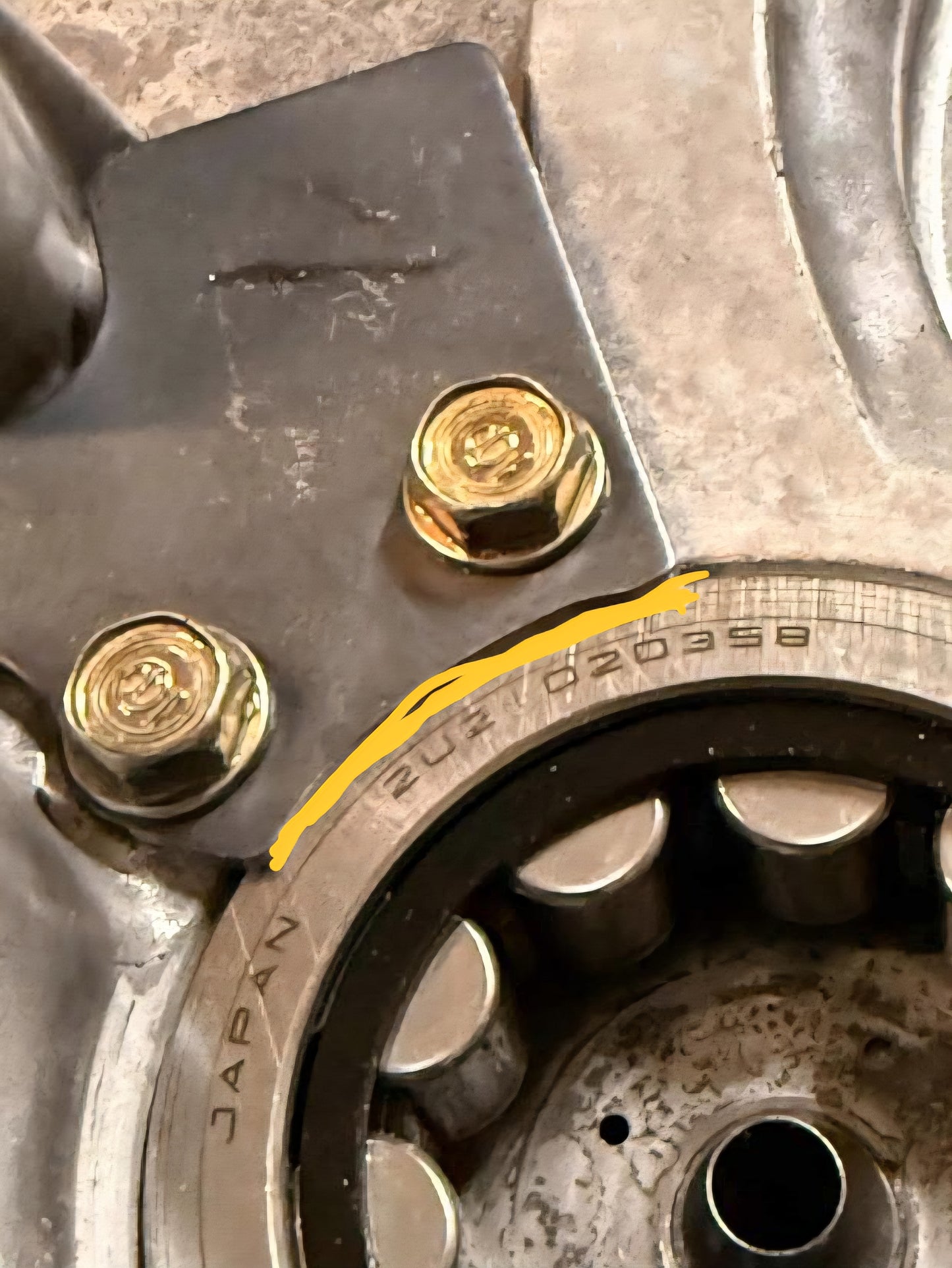

Bearing Plate: Trimming is required to clear the oversized 4.0 countershaft teeth.
-
-
Required Components:
-
Countershaft Bearing: Requires Civic Si countershaft bearing (4.7).
-
Synchronizers: Must use Triple Cone Synchros (1st–2nd) and Dual Cone Synchros (3rd–4th, 6-speed style).
-
Hub & Slider: Requires a 6-speed 3rd–4th hub and slider (will not operate with 5-speed components).
-

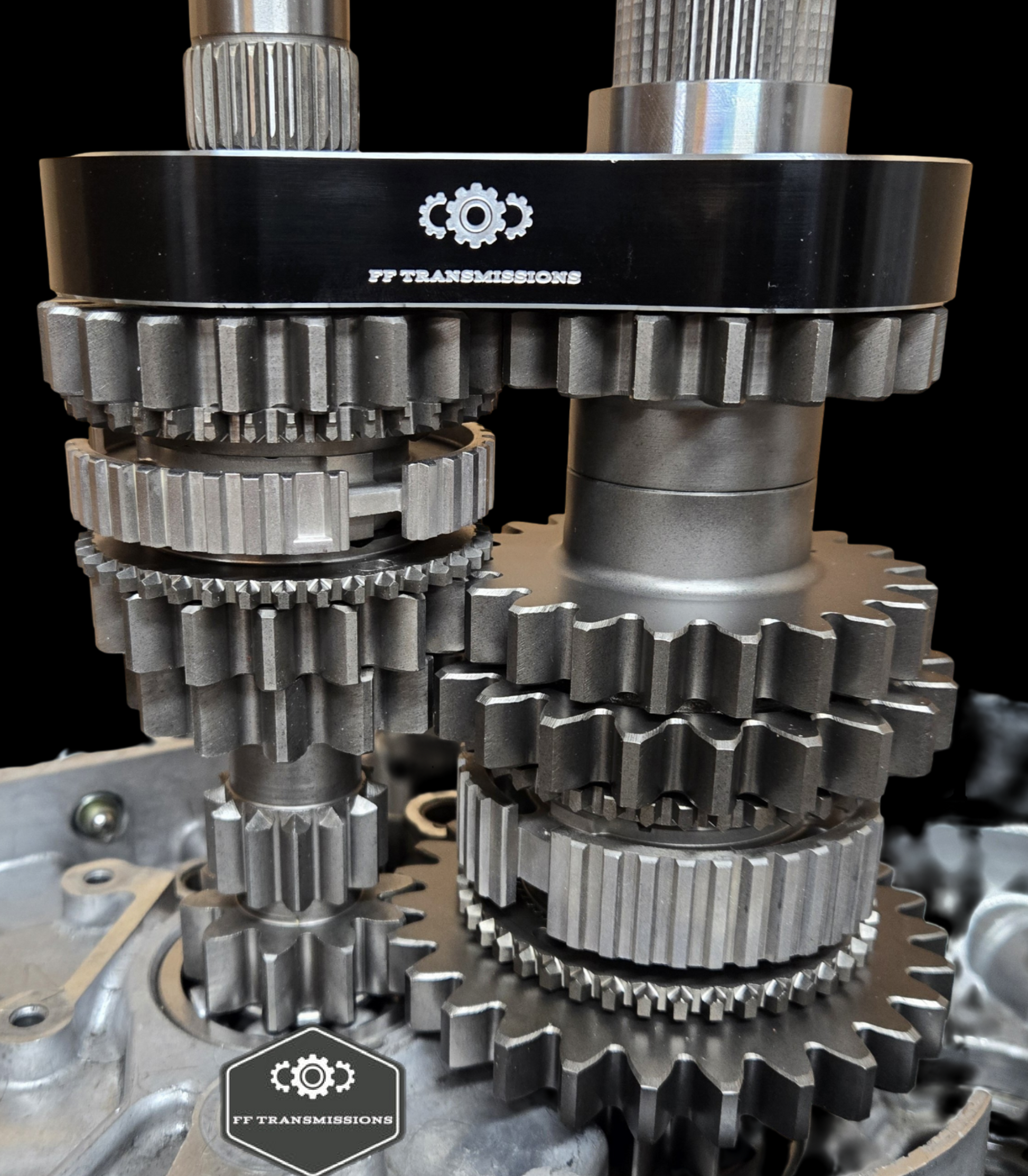

Casing Brace & Cuff Configurations
To prevent shaft deflection ("stack spreading") under extreme torque, this gearset supports three cuff configurations:Option A: Pure 4-Speed Conversion (5th Gear Cuff + 6th Gear Delete)
Cuff replaces 5th gear and deletes 6th gear entirely. Includes a custom spacer for the 5–6 shift fork to rest on, turning the unit into a ultra-stout 4-speed drag transmission.
Option B: 5th Gear Cuff + OEM 6th Gear
Cuff replaces 5th gear while retaining your factory 6th gear for a overdrive gear.
Option C: 6th Gear Cuff + 5th Gear
Cuff replaces 6th gear while keeping a functional 5th gear.
Conversion Requirement (Options B & C):
If installed in a 5-speed transmission case, you must convert to 6-speed selector components (6-speed 3–4 fork, 3–4 sliding reverse fork, 6-speed 5–6 fork, and a 6-speed selector interlock cage). The 6-speed interlock cage has a longer slot required to reach reverse; standard 5-speed hardware will not operate properly.
