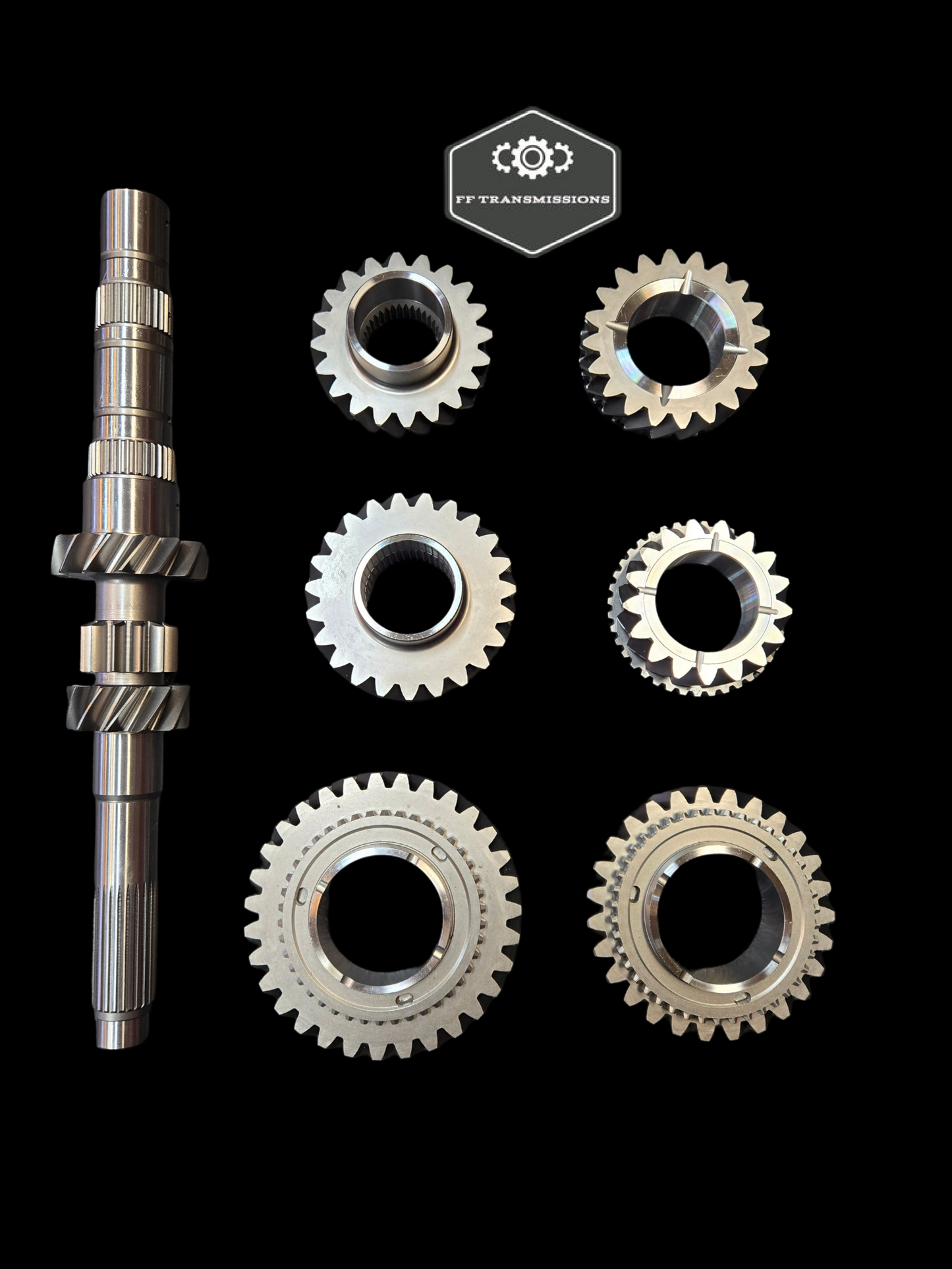

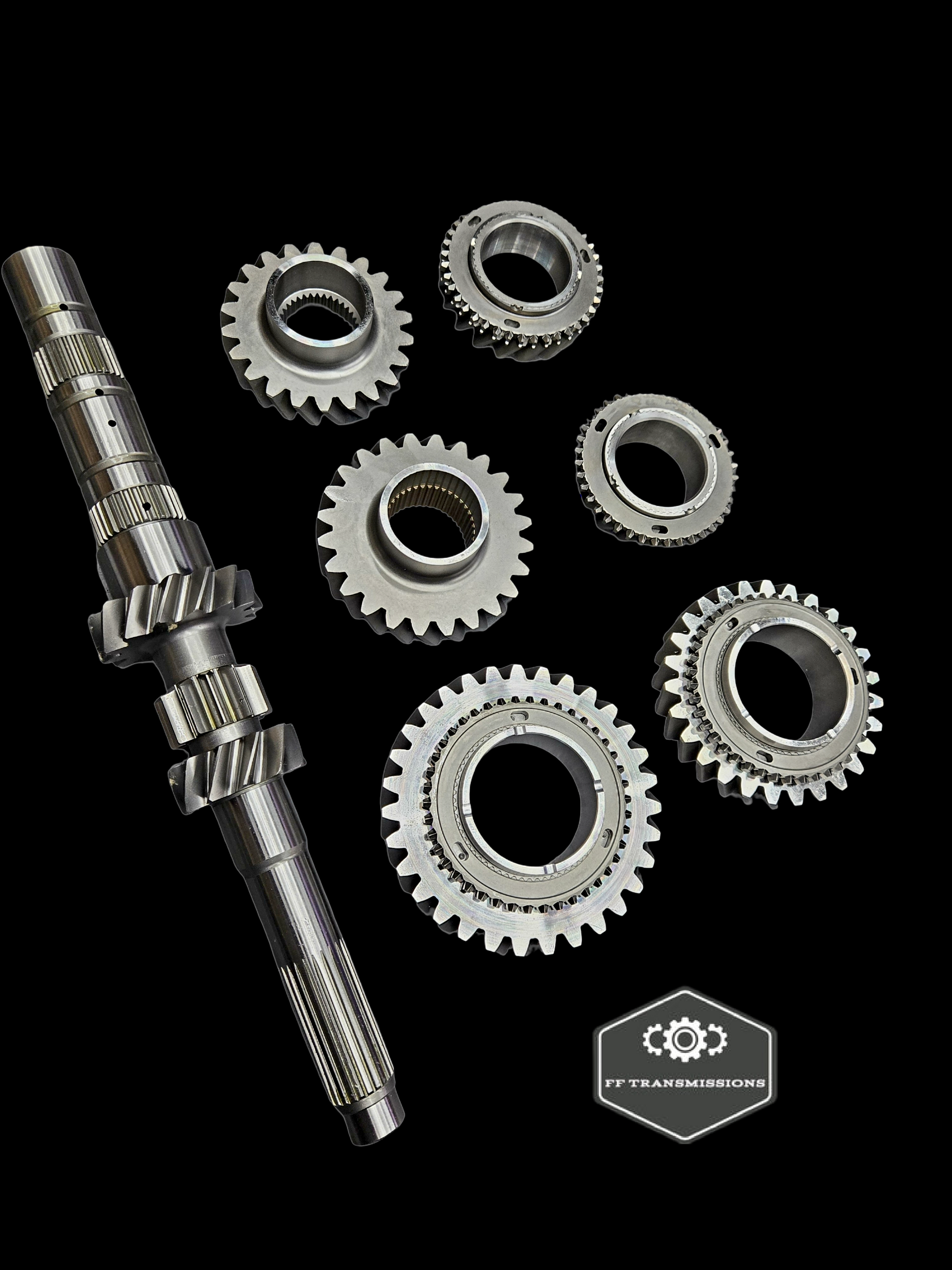

FF TRANSMISSIONS HELICAL CUT TURBO SYNCHRO GEARS HONDA K SERIES K20&K24 1-4 V2
- Regular price
- $1,795.00
- Sale price
- $1,795.00
- Regular price
-
**Key Installation & Clearancing Notes**

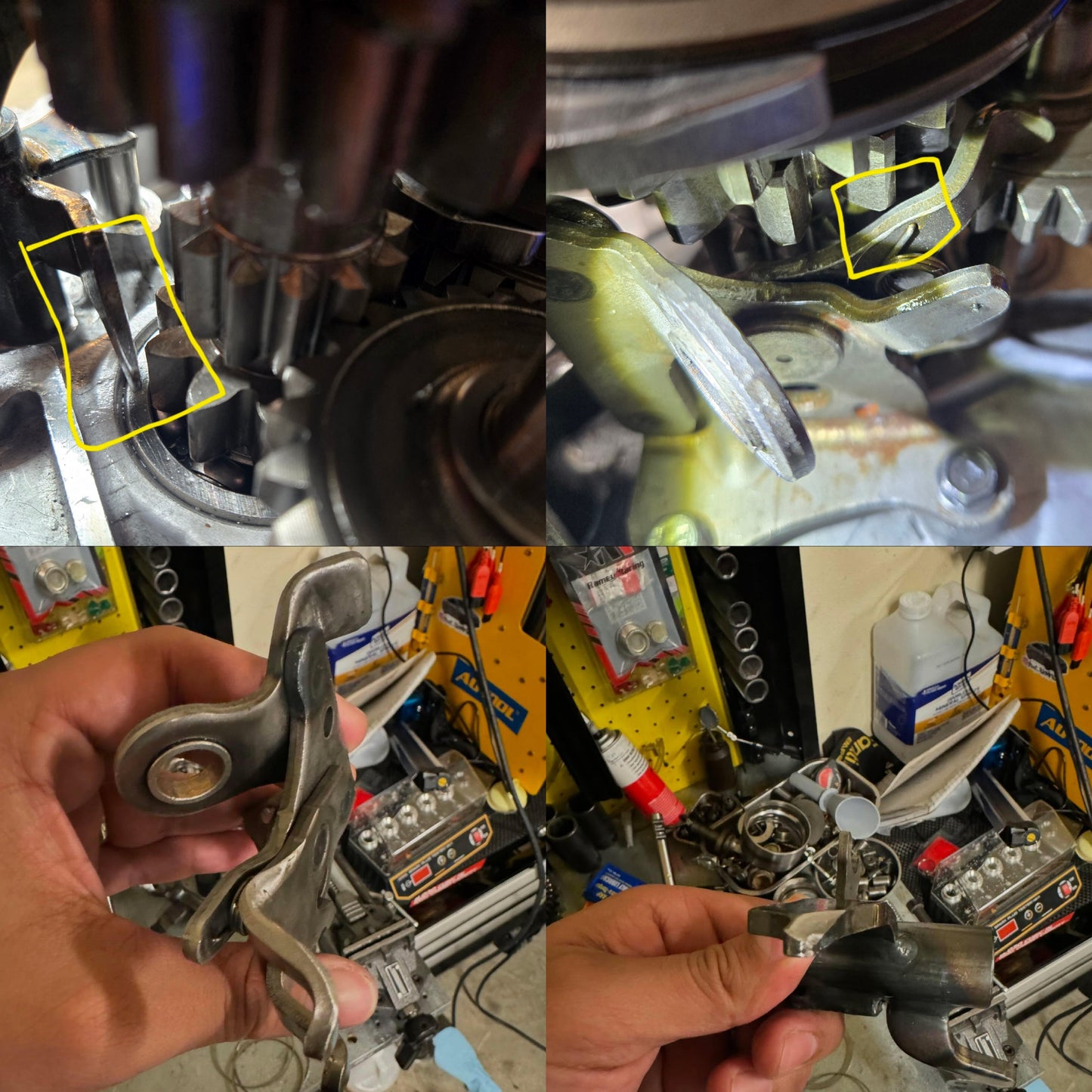

* **Reverse Actuator & Fork:** Machining/clearancing is required on both the reverse actuator and reverse fork to clear the physically larger gear teeth.
* **Speed Sensor Clearance:** If utilizing the front casing speed sensor location (rather than the differential position), space the sensor back using a washer to prevent the magnetic pickup from hitting the enlarged gears.
* **Serviceability:** Built on splined gear assemblies featuring replaceable, serviceable engagement rings.
---
**Technical Specifications & Ratios**
| Feature | Details |
| --- | --- |
| **Gear Cut** | Helical cut (street-friendly, low gear noise) |
| **Gears Included** | Full 1st through 4th gear set |
| **Gear Ratios** | 1st: **2.80** | 2nd: **1.95** | 3rd: **1.30** | 4th: **1.01** |
| **Power Rating** | Version 2 rated up to **600 HP** |
| **Metallurgy & Finish** | Forged high-strength steel, heat-treated, cryo-treated, and shot-peened |
---
**Required Drivetrain Hardware**
* **1–2 Synchros:** Requires **triple-cone 1–2 synchros**.
* **3–4 Synchros:** Requires **dual-cone 3–4 synchros**.
* **Hubs & Sliders:** Requires **6-speed hubs and sliders** (incompatible with 5-speed hardware).
