FF TRANSMISSIONS STRAIGHT CUT DOG GEARS HONDA K SERIES K20&K24 1-4, FINAL DRIVE, BRACE CUFF V2
- Regular price
- $3,995.00
- Sale price
- $3,995.00
- Regular price
-
Shipping calculated at checkout.
Preparing and handling the order my take 4-5 days before shipping if in stock, eta completion end of december for next batch. PRE ORDER AVAILABLE

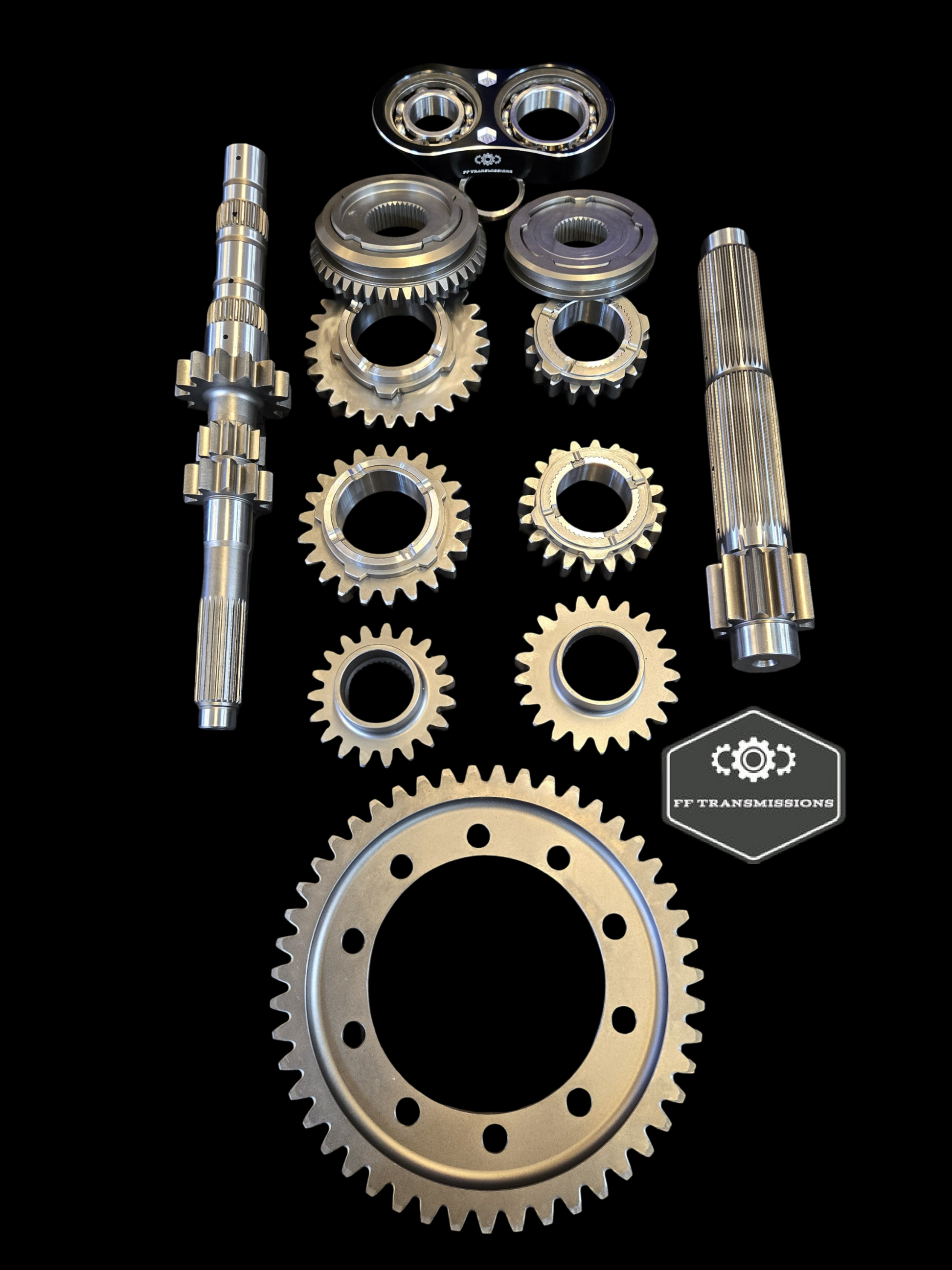

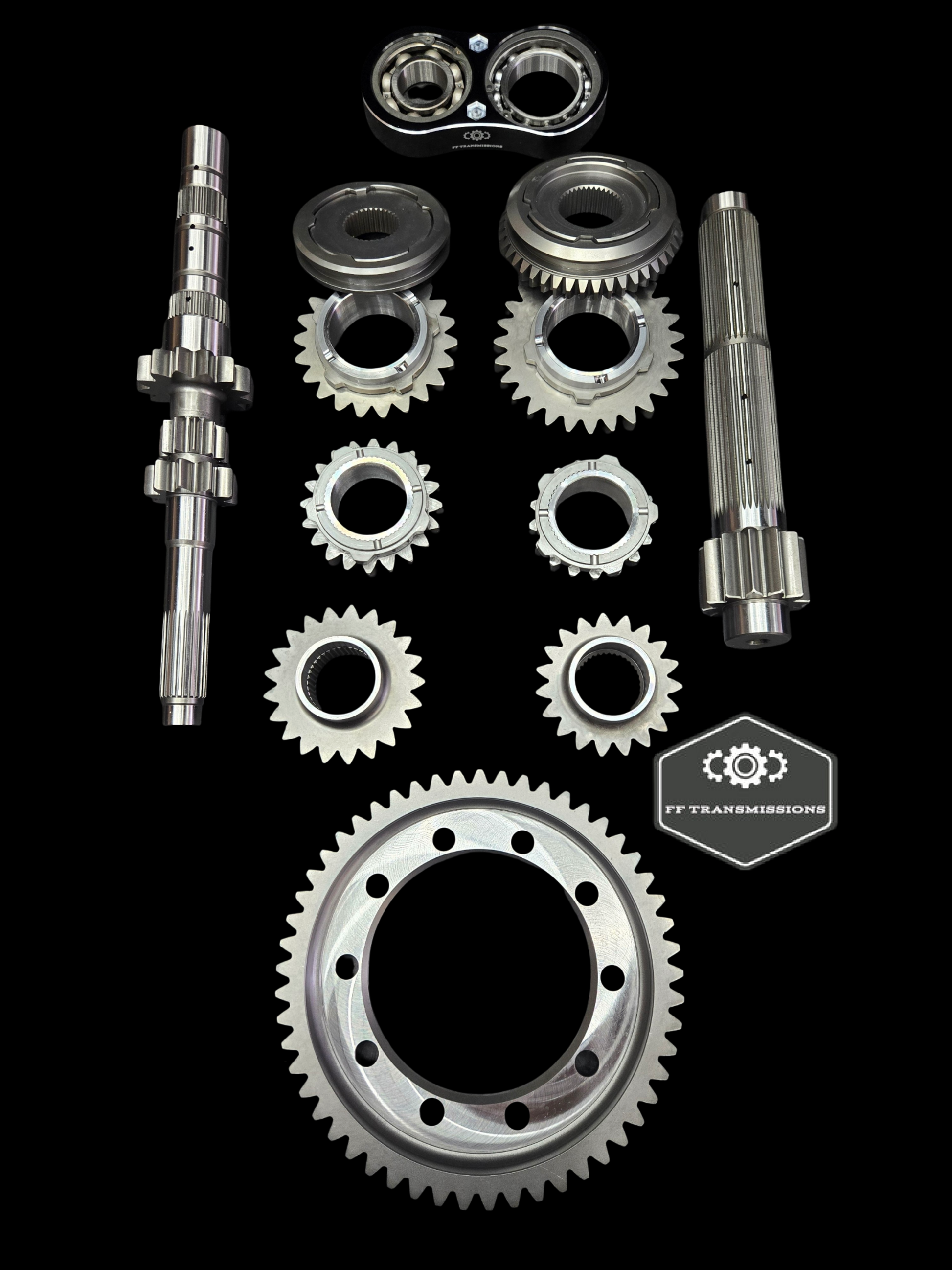

Built for high-horsepower drag and street-strip applications, this V2 Honda K-Series dog engagement gearset delivers race-proven strength without the high price tag. Designed specifically for turbo builds pushing up to 750 HP, this set converts your transmission into a rugged 1st–4th straight-cut dog box with fully serviceable engagement components and modular cuff options.
By replacing traditional synchronizers with 5 large, heavy-duty dog teeth, this gearset opens up a wide shift window for lightning-fast gear changes under full load. Splined gear bodies make long-term maintenance and individual component replacement simple and cost-effective.
Technical Specifications
| Feature | Specification |
| Power Rating | V2 – Up to 750 HP |
| Gear Pattern | Straight-Cut |
| Engagement | 5-Tooth Dog Engagement (Serviceable) |
| Included Components | 1st–4th Gears, 1st–4th Hub & Slider Set, Final Drive, Cuff |
| Material Processing | Heavy-Duty Forged Alloy (Heat-Treated, Cryo-Treated, Shot-Peened) |
| Mainshaft/Countershaft | Splined Gear Bodies & Cuff Ready |
Gear Ratio Breakdown
| Gear | Ratio |
| 1st Gear | 2.6 |
| 2nd Gear | 1.6 |
| 3rd Gear | 1.2 |
| 4th Gear | 0.9 |
Key Features & Benefits
-
Minimal Drivetrain Loss: Straight-cut tooth geometry significantly reduces parasitic friction and gear drag compared to helical gears, putting maximum power to the ground.
-
No-Lift Shift (NLS) Ready: Compatible with strain-gauge setups to momentarily interrupt ignition for clutchless full-throttle shifting during drag racing.
-
Cost-Effective Long-Term Maintenance: Splined gear bodies allow individual gears to be serviced or replaced independently without scrapping the entire assembly.
-

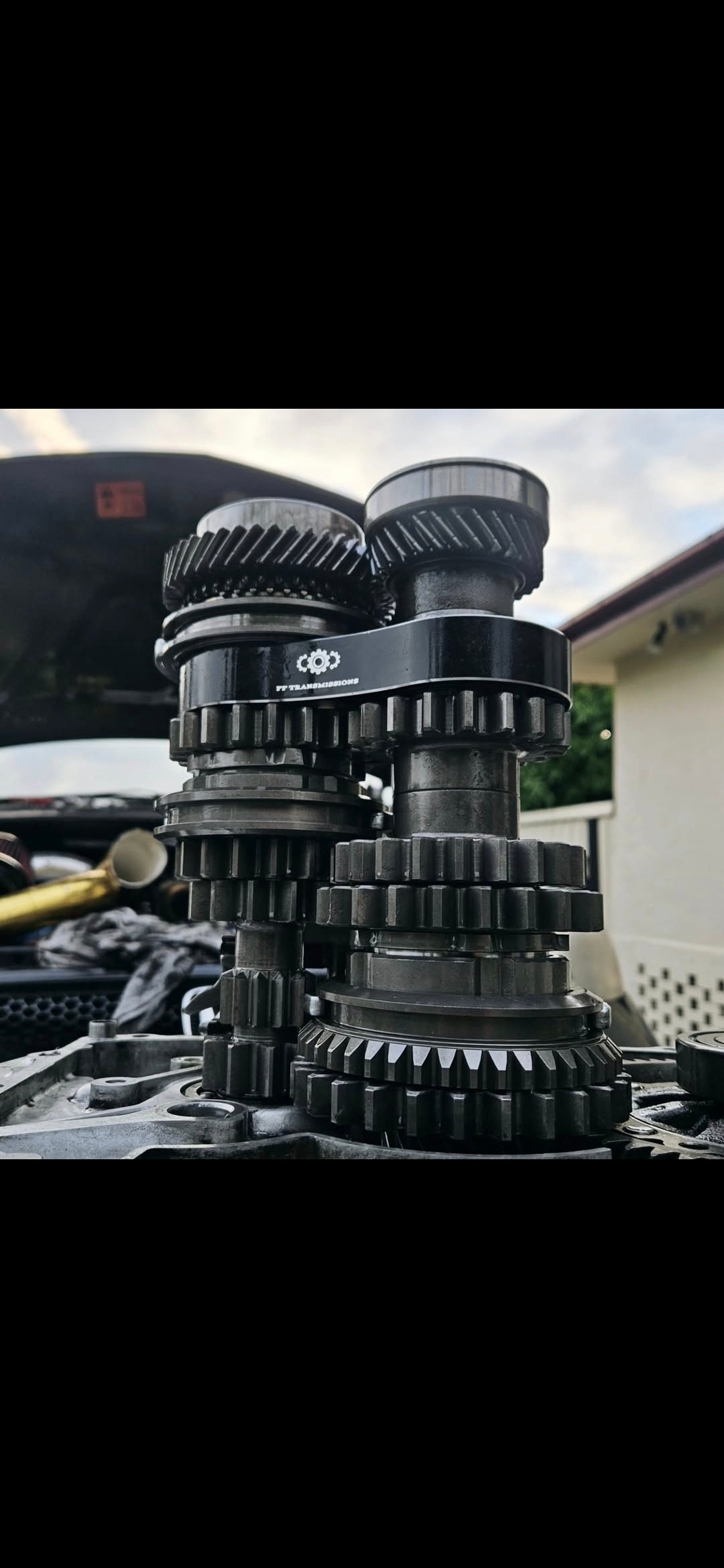

Shaft Rigidity: Designed to accept a brace cuff to eliminate shaft flexing and gear separation under heavy boost.
Casing Brace & Cuff Configurations
To prevent shaft deflection ("stack spreading") under extreme torque, this gearset supports three cuff configurations:
-
Option A: Pure 4-Speed Conversion (5th Gear Cuff + 6th Gear Delete)
-
Cuff replaces 5th gear and deletes 6th gear entirely. Includes a custom spacer for the 5–6 shift fork to rest on, turning the unit into a ultra-stout 4-speed drag transmission.
-
-
Option B: 5th Gear Cuff + OEM 6th Gear
-
Cuff replaces 5th gear while retaining your factory 6th gear for a overdrive gear.
-
-
Option C: 6th Gear Cuff + 5th Gear
-
Cuff replaces 6th gear while keeping a functional 5th gear.
-
Conversion Requirement (Options B & C):If installed in a 5-speed transmission case, you must convert to 6-speed selector components (6-speed 3–4 fork, 3–4 sliding reverse fork, 6-speed 5–6 fork, and a 6-speed selector interlock cage). The 6-speed interlock cage has a longer slot required to reach reverse; standard 5-speed hardware will not operate properly.
⚠️ CRITICAL INSTALLATION & CLEARANCE NOTES
Modifications to internal components are required due to the oversized, high-strength tooth profile:
Reverse Actuator & Reverse Fork: Must be clearanced (ground down) to accommodate the larger gear diameters.
Front Speed Sensor Clearance: For transmission casings with the speed sensor mounted in the front (not on the differential), you must space the sensor outward using a washer. Failure to clearance will cause the larger gears to strike the sensor magnet and destroy the sensor.
Bearing Plate Trimming: The oversized 4.0 countershaft teeth require trimming of the internal bearing plate for full clearance.
Shifting & Operation Guidelines
-
Racing Use (Clutchless/NLS): Flat-shifting without the clutch is permissible ONLY on the track using a properly calibrated strain-gauge ignition cut.
-
Street Driving: Street or pit driving requires normal clutch operation.
-
Proper Setup Required: Dog teeth depend on precise ignition-cut timing during no-lift shifts. Improper strain-gauge settings, poor ECU cut logic, or missed shifts will round off dog engagement teeth and require replacing.
