FF TRANSMISSIONS STRAIGHT CUT DOG GEARS HONDA K SERIES K20&K24 1-4 V2
- Regular price
- $2,895.00
- Sale price
- $2,895.00
- Regular price
-
**Key Installation & Clearancing Guidelines**
* **Reverse Actuator & Fork:** Machining/clearancing is required on both the reverse actuator and reverse fork to provide adequate clearance for the enlarged gears.
* **Speed Sensor:** If using the front casing position (rather than the differential), space the speed sensor out using a washer to prevent the magnetic pick-up from making physical contact with the larger gear teeth.
---
**Technical Specifications & Construction**
| Feature | Details |
| --- | --- |

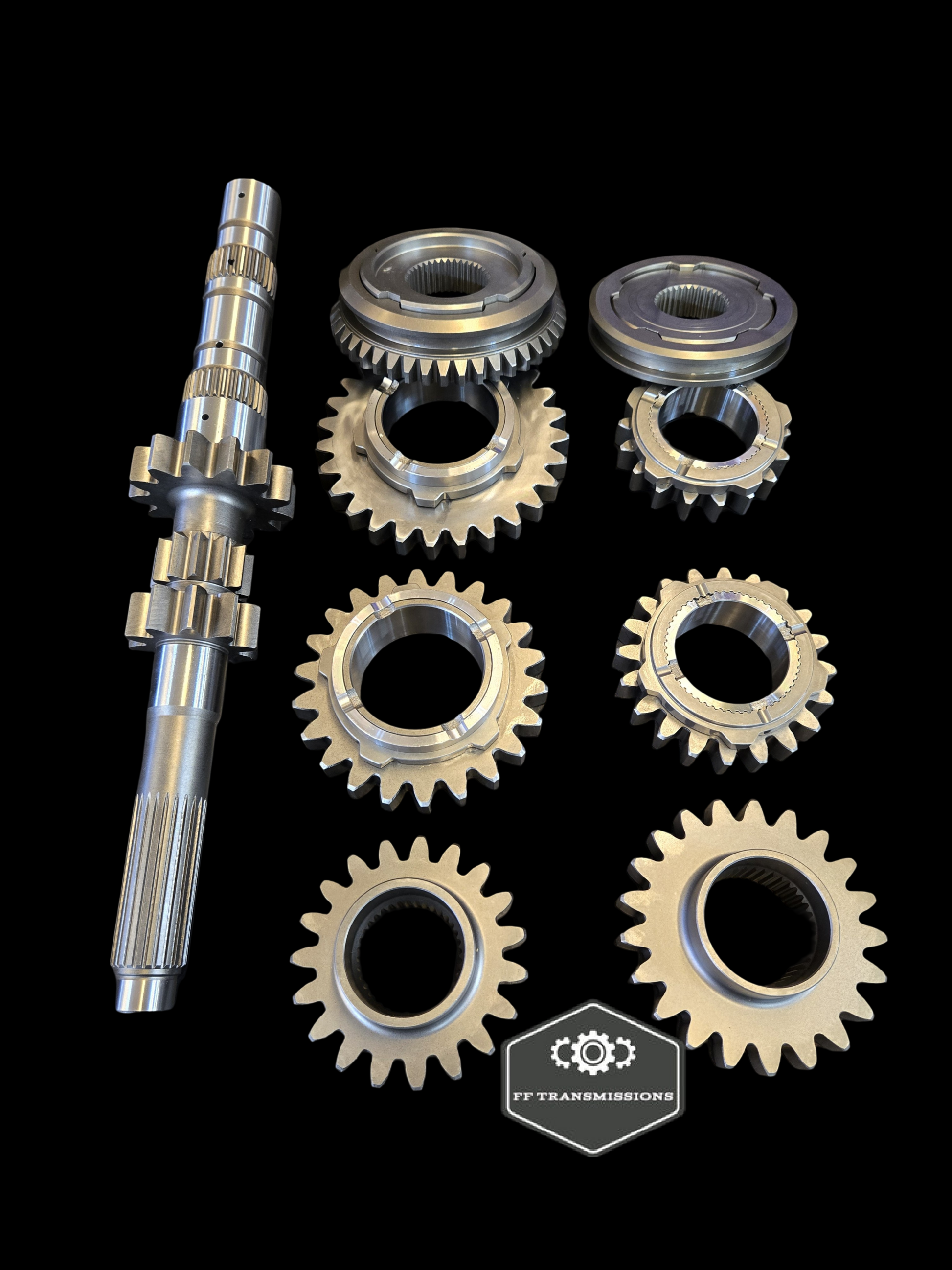

| **Gear Set** | 1st–4th straight-cut, dog-engagement aftermarket gearset |
| **Ratios** | 1st: **2.6** | 2nd: **1.6** | 3rd: **1.2** | 4th: **0.9** |
| **Included Hardware** | 1–4 hub and slider set with fully serviceable dogs |
| **Power Rating** | V2 rating up to **750 HP** |
| **Metallurgy** | Forged, heat-treated, cryo-treated, and shot-peened alloy |
| **Engagement** | 5 large dog teeth per gear (replaces factory syncros) |
---
**Operation & Strain Gauge Setup**
* **Race Operation:** Supports full no-lift, clutchless shifting when integrated with a properly calibrated strain gauge/ignition cut setup.
* **Street/Normal Driving:** Clutch operation is mandatory for standard driving to prevent premature wear.
* **Calibration Warning:** Incorrect strain gauge cut times, improper installation, or missed shifts will damage the dog teeth and engagement hubs, requiring component replacement.
