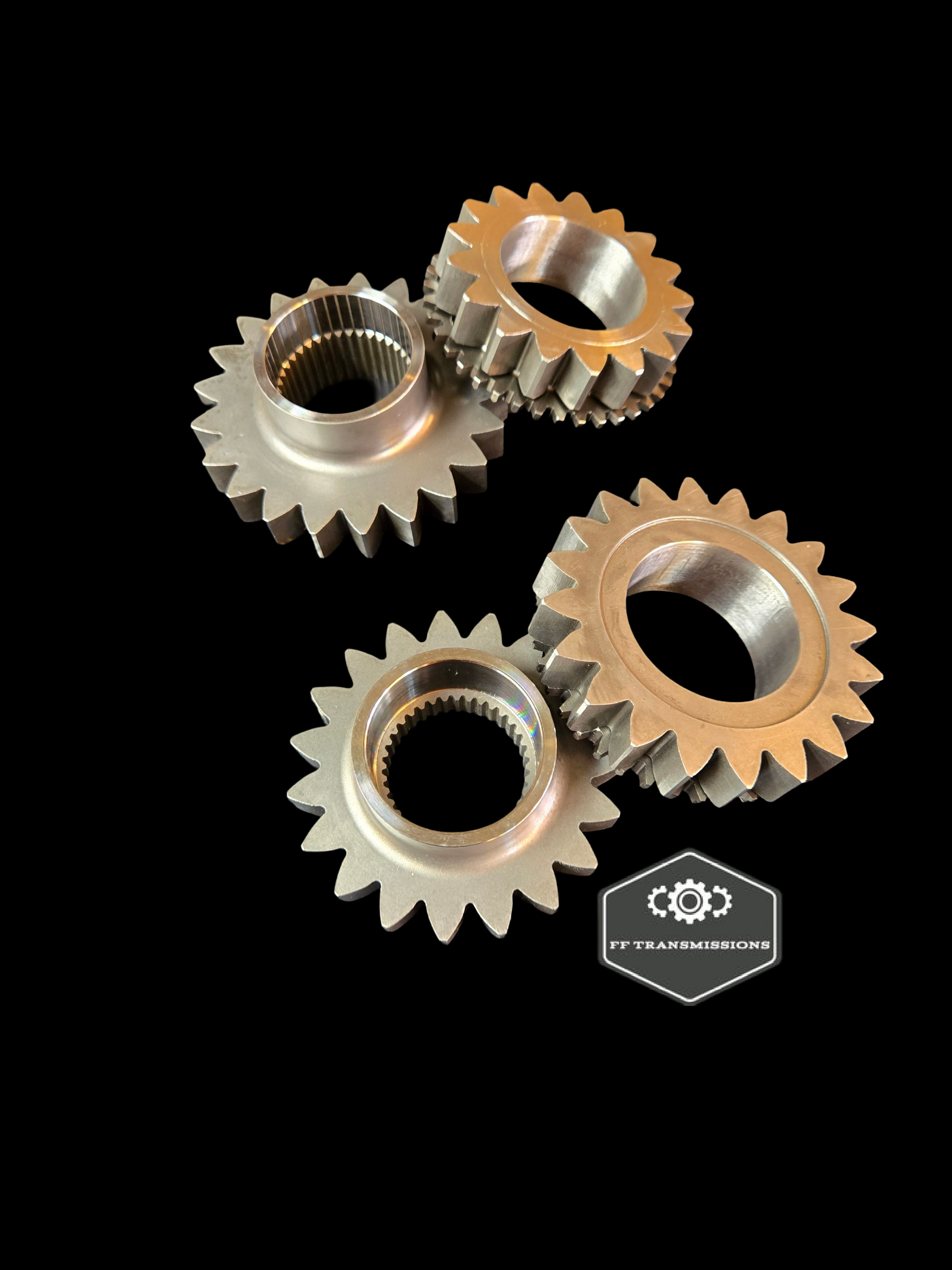

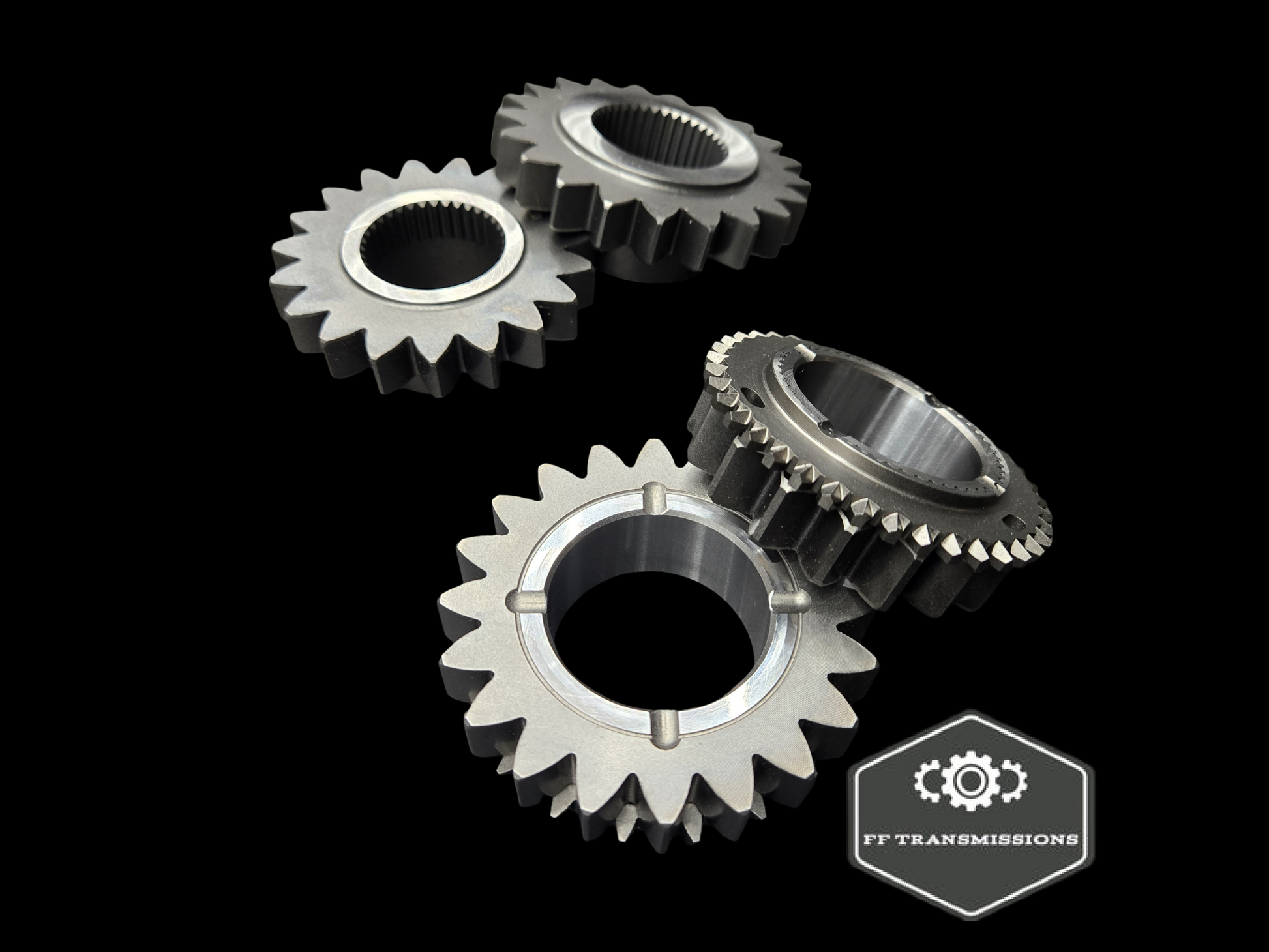

FF TRANSMISSIONS HONDA K SERIES STRAIGHT CUT TURBO SYNCHRO GEARS 3-4 V2
- Regular price
- $1,055.00
- Sale price
- $1,055.00
- Regular price
-
Shipping calculated at checkout.
PRE ORDER! ETA MID NOVEMBER RESTOCK! Subject to change if any delays occur, do not order if in a rush. This is to guarantee you get a set on the next batch!
Built for high-horsepower turbo street builds, this V2 gearset maximizes strength and reduces drivetrain power loss at an accessible price point. Engineered with massive gear teeth, forged heat-treated alloy, cryo treatment, and shot peening to handle up to 750 HP.
Key Specifications & Ratios
-
Compatibility: Honda K-Series 5 and 6-speed manual transmissions. Front and All wheel drive
-
Power Rating: Up to 750 HP (V2 specification)
-
Gear Profile: Straight-cut (tooth profile for minimal friction and power loss)
-
Gear Ratios:
-
3rd Gear: 1.2
-
4th Gear: 0.9
-
Design & Features
-
Serviceable Modular Construction: Features splined gear bodies with replaceable engagement rings. Perform quick maintenance and rebuilds without replacing full gear bodies.
-
Forged & Treated Material: Heat-treated, cryo-treated, and shot-peened forged steel designed to withstand intense shock loads.
Fitment Requirements & Installation Notes
-
Synchros: Requires dual-cone synchros for 3rd and 4th gears.
-
Hub & Sliders: Requires 6-speed hub and sliders (will not operate with 5-speed components).
-
⚠️ CRITICAL CLEARANCE NOTE: For transmission casings using a front-mounted speed sensor (non-differential pickup), you MUST clearance the speed sensor using a washer. Larger gear dimensions can strike and destroy the sensor magnet if not properly spaced.
